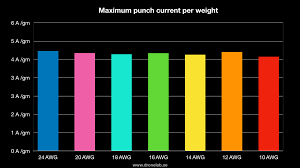

12 Awg Amperage Rating : Yes, 12 awg stranded i repeat stranded copper conductor can handle 30 amps i am quite sure.. Common us awg wire gauges and amps ratings. Automotive wire size 5 amps 20 amps; 16 awg — — 24: Recommended length and amperage for automotive wire while maintaining a 2% or less voltage drop at 12 volts; 16 gauge wire (awg) 11.5 ft:
When a cord has three current carrying conductors there is a decrease in amperage. The 12 awg wires will withstand that amount of current being of a larger diameter, where the 14 awg wire being smaller will heat up over 15 amps and cause the wire or a 15 amp outlet to melt or catch fire. Recommended length and amperage for automotive wire while maintaining a 2% or less voltage drop at 12 volts; 16 awg — — 24: Five percent is normally acceptable in low voltage systems, but if you want a 2% figure, divide the given distances by 2.5.
Matching Wire Size To Circuit Amperage from www.thespruce.com Recommended length and amperage for automotive wire while maintaining a 2% or less voltage drop at 12 volts; If we assume thhn insulation with a temperature rating of 90 degrees c you have a 30 amp capacity. Check your local electrical code for the correct current capacity (ampacity) for mains and in wall wiring. However, rule of thumb is that the overcurrent protection for 12 awg solid copper is 20 amps. Size temperature rating of copper conductor (awg or kcmil) 60°c (140°f) 75°c (167°f) 90°c (194°f) 18 awg — — 18: This is a five percent table which means at these amperage ratings at the listed distances, 5% of the power would be lost to resistance. Five percent is normally acceptable in low voltage systems, but if you want a 2% figure, divide the given distances by 2.5. Typical household wiring is awg number 12 or 14.
In respect to this, how many amps can 12 gauge wire carry?

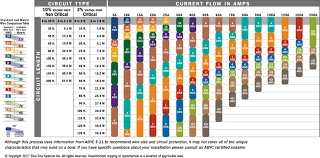

What gauge awg wire to use for solar electric systems. Five percent is normally acceptable in low voltage systems, but if you want a 2% figure, divide the given distances by 2.5. Unless specifically permitted in section 240.4(e) through (g), the overcurrent protection shall not exceed 15 amperes for 14 awg, 20 amperes for 12 awg, and 30 amperes for 10 awg copper; 12 gauge wire is rated for a maximum of 20 amps. 16 gauge wire (awg) 11.5 ft: Check your local electrical code for the correct current capacity (ampacity) for mains and in wall wiring. However, rule of thumb is that the overcurrent protection for 12 awg solid copper is 20 amps. 12 gauge wire (awg) 29.4 ft: Amp chart lead wire current carrying capacity (ampacity) awg size insulated conductor temperature rating awg size at 80°c at 90°c at 105°c at 125°c at 150°c at 200°c 40 0.33 0.49 0.55 0.60 0.71 0.78 40 38 0.47 0.68 0.77 Can 12 awg handle 30 amps? 16 awg — — 24: 14 awg gauge wires can handle a load of no more. In order for your automotive electrical system to perform properly, your wire must be sized properly based on the amount of current (amperage) the wire must carry, and the length that the wire needs to be.
Size temperature rating of copper conductor (awg or kcmil) 60°c (140°f) 75°c (167°f) 90°c (194°f) 18 awg — — 18: However, rule of thumb is that the overcurrent protection for 12 awg solid copper is 20 amps. Five percent is normally acceptable in low voltage systems, but if you want a 2% figure, divide the given distances by 2.5. The amperage rating of a cord is a function of the wire gauge, number of current carrying conductors and length of the cord. A grounding conductor, or one which carries only the unbalanced.
2 from In respect to this, how many amps can 12 gauge wire carry? A grounding conductor, or one which carries only the unbalanced. 14 gauge wire (awg) 18.4 ft: 14 awg gauge wires can handle a load of no more. 16 awg — — 24: Likewise, when the length of the cord exceeds fifty feet there is a decrease in amperage. The amperage rating of a cord is a function of the wire gauge, number of current carrying conductors and length of the cord. Common us awg wire gauges and amps ratings.

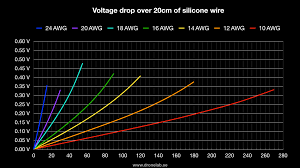

For a 12v system the maximum voltage drop should be less than (12 v) x 3% = 0.36 v.

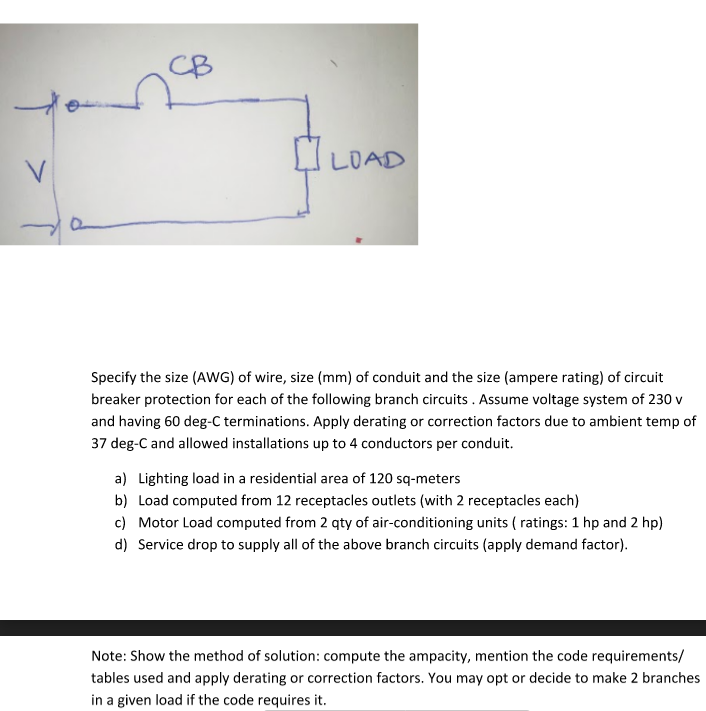

12 gauge wire is rated for a maximum of 20 amps. This is a five percent table which means at these amperage ratings at the listed distances, 5% of the power would be lost to resistance. When a cord has three current carrying conductors there is a decrease in amperage. The 12 awg wires will withstand that amount of current being of a larger diameter, where the 14 awg wire being smaller will heat up over 15 amps and cause the wire or a 15 amp outlet to melt or catch fire. To calculate the load requirement for a circuit, first add up the wattage of all the electrical devices that will be on the circuit. Check your local electrical code for the correct current capacity (ampacity) for mains and in wall wiring. 12 gauge wire (awg) 29.4 ft: Yes, 12 awg stranded i repeat stranded copper conductor can handle 30 amps i am quite sure. These ratings are for standard copper nm sheathed cable, but there are instances where these amperage ratings vary. The tables below are intended to be a general guide for wire size and amp ratings. For example, you want to add some flood lights to your vehicle. Size temperature rating of copper conductor (awg or kcmil) 60°c (140°f) 75°c (167°f) 90°c (194°f) 18 awg — — 18: Telephone wire is typical awg 22, 24, or 26.
Amp chart lead wire current carrying capacity (ampacity) awg size insulated conductor temperature rating awg size at 80°c at 90°c at 105°c at 125°c at 150°c at 200°c 40 0.33 0.49 0.55 0.60 0.71 0.78 40 38 0.47 0.68 0.77 This is a five percent table which means at these amperage ratings at the listed distances, 5% of the power would be lost to resistance. Cerrowire markets through a number of quality retailers and manufacturer. Viair recommends the following gauge wire be used, depending on the length of wire run (with all bends and routing included in total length), and the maximum amp draw of the system. Check your local electrical code for the correct current capacity (ampacity) for mains and in wall wiring.
Choosing The Right Awg For Server Power Cables Server Fault from i.stack.imgur.com If we assume thhn insulation with a temperature rating of 90 degrees c you have a 30 amp capacity. Typical household wiring is awg number 12 or 14. 8 gauge wire (awg) 74.4 ft. In order for your automotive electrical system to perform properly, your wire must be sized properly based on the amount of current (amperage) the wire must carry, and the length that the wire needs to be. Yes, 12 awg stranded i repeat stranded copper conductor can handle 30 amps i am quite sure. 16 gauge wire (awg) 11.5 ft: To calculate the load requirement for a circuit, first add up the wattage of all the electrical devices that will be on the circuit. The tables below are intended to be a general guide for wire size and amp ratings.
The amperage rating of a cord is a function of the wire gauge, number of current carrying conductors and length of the cord.
The 12 awg wires will withstand that amount of current being of a larger diameter, where the 14 awg wire being smaller will heat up over 15 amps and cause the wire or a 15 amp outlet to melt or catch fire. Viair recommends the following gauge wire be used, depending on the length of wire run (with all bends and routing included in total length), and the maximum amp draw of the system. The tables below are intended to be a general guide for wire size and amp ratings. In respect to this, how many amps can 12 gauge wire carry? The amperage rating of a cord is a function of the wire gauge, number of current carrying conductors and length of the cord. Five percent is normally acceptable in low voltage systems, but if you want a 2% figure, divide the given distances by 2.5. Recommended length and amperage for automotive wire while maintaining a 2% or less voltage drop at 12 volts; Likewise, when the length of the cord exceeds fifty feet there is a decrease in amperage. Common us awg wire gauges and amps ratings. When a cord has three current carrying conductors there is a decrease in amperage. Telephone wire is typical awg 22, 24, or 26. Insulated for 600 volts, number 12 awg wire is rated 20 amps to 30 amps depending on the thermal capability of the insulation applied to the wire. Cerrowire markets through a number of quality retailers and manufacturer.
